ThermaSkirt BM3 Internal Corner Set Connection - 90°
Product code: 309883
New
£45
Currently in Stock
Delivery
Within 5 days from our supplier
Supplier delivery
The ThermaSkirt BM3 Internal Corner Set Connection is an ingenious and simple way to negotiate a 90° corner using a patented push fit connector. Tested to over 15 bars of pressure, the tough durable thermoplastic fittings have double Teflon(r) coated o-rings for a 40 year life span and silent slipperyness into the ThermaSkirt profile. The ultra-thin, color matched stainless steel cover hides the connection and provides a tamper proof protection against accidental damage and scuffing.
Read more
Read less
Supplier delivery
Product details
- Depth: 20 mm
- Height: 115 mm
- Projection from Wall Including Radiator: 20 mm
- Projection from Wall: 0 mm
- Pipe Inlet Size: 15 mm
- Weight: 0.36 kg
- Material: Plastic & stainless steel
- Colour: White
- Maximum Temperature: 75°
- Application: Domestic & commercial
- Years Guaranteed: 10
- Type: Connection kits
- Manufacturer Model No: ICSBM3-CW
- Brand Name: Discrete Heat
- Range Description: ThermaSkirt
Features & benefits
- Standard connection set for external corners
- For chamfering the ends of the profiles use DTSK (ThermaSkirt Installation & Spare Parts Kit).
- Tolerant to ± 5° to accommodate imperfect corners
- Single side clips can withstand up to 13 bar pressure
- Patented push fit connector allows for expansion
- Clip on colour matched 0.5mm stainless cover makes the corner practically invisible
- Sturdy cover clip feature prevents accidental detachment and resists tampering
- Kit includes: 90° oval to oval connectors, retaining clips cover

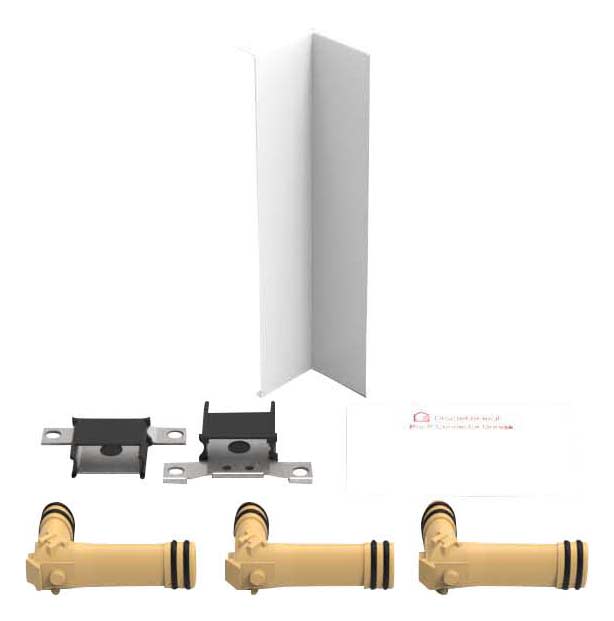

- Contains: 2 connector clips, 3 x 90° elbow connectors (oval-oval), 10ml sachet of grease and 1 internal corner cover
- Thermaskirt systems work well with lower flow temperatures which is proven to reduce energy consumption. Compatible with all boiler types including air-source heat pumps
