ThermaSkirt BM3 Bi-Directional Feed & Return Set - 15mm
Product code: 309870
New
£180
Currently in Stock
Delivery
Within 5 days from our supplier
Supplier delivery
The ThermaSkirt BM3 Bi-Directional Feed and Return Set replaces your radiator using existing pipework. Extruded from aluminium, Thermaskirt profiles radiate heat more effectively than normal radiators allowing boilers to operate at lower flow temperatures thus saving energy. Installing Thermaskirt profiles around the circumference of a room results in much less temperature variation than in a room with a normal radiator enhancing comfort and reducing air movement caused by convection. A similar effect to underfloor heating but with a less invasive installation. This kit connects to 15mm pipes and enables a ThermaSkirt heating system to flow and heat in 2 directions from a single point. ThermaSkirt connections are push fit; no soldering required. No controls are provided and these need to be ordered and installed separately.
Read more
Read less
Saved to Project List
ThermaSkirt BM3 Bi-Directional Feed & Return Set - 15mm
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Product details
- Depth: 20 mm
- Height: 170 mm
- Projection from Wall Including Radiator: 20 mm
- Projection from Wall: 0 mm
- Pipe Inlet Size: 15 mm
- Weight: 0.31 kg
- Material: Plastic & stainless steel
- Colour: White
- Maximum Temperature: 75°
- Application: Domestic & commercial
- Years Guaranteed: 10
- Type: Connection kits
- Manufacturer Model No: BFS15BM3-CW
- Brand Name: Discrete Heat
- Range Description: ThermaSkirt
Features & benefits
- Bi-directional feed set ideal for mid wall radiator replacement
- Suitable for remote control via a 2 port valve or manifold system
- Connects onto standard 15mm pipe - copper or plastic
- Push fit fittings for simple DIY installation
- Tough Powder coat stainless steel covers for durable reliability
- Works with any wall mounted thermostat and suitable valve control
- Kit includes: tectite 15mm connectors, round to oval adaptors, return loop manifolds, covers
- Excludes 15mm pipe

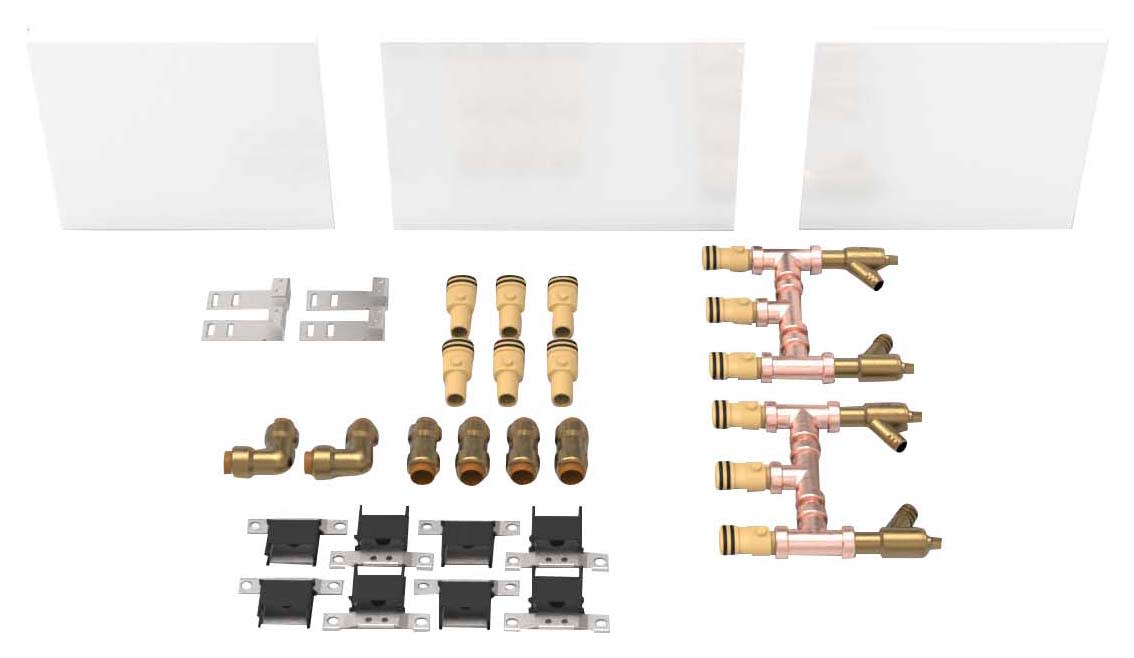

- Contains: 2 tectite elbows, 4 tectite straight, 4 anchor brackets, 4 connector clips, 12 oval to 15mm straight connectors, 2 return manifold, 1200mm left hand cover, 1200mm right hand cover and 1250mm flat middle cover
- Thermaskirt systems work well with lower flow temperatures which is proven to reduce energy consumption. Compatible with all boiler types including air-source heat pumps
