ThermaSkirt BM2 Internal Corner Set Connection - 90°
ThermaSkirt BM2 Internal Corner Set Connection - 90°
Product code: 309884
Currently out of stock, use our Notify Me button to receive an email when this product is available

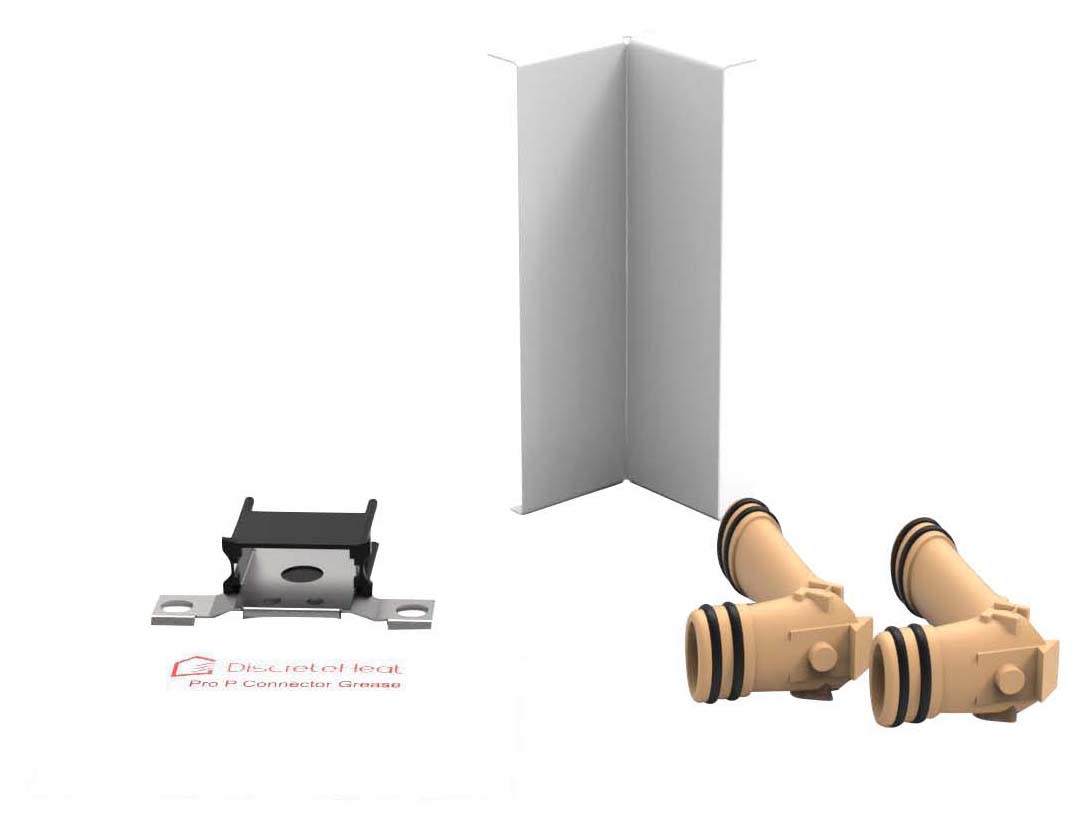

The ThermaSkirt BM2 Internal Corner Set Connection simplifies the process of negotiating a 90° (±5°) corner for your ThermaSkirt system using a push-fit connector. The durable fitting is designed to be tough and features double O-rings for a reliable seal. A thin, color-matched stainless steel cover hides the connection and protects against damage. The kit includes the 90° oval connectors, retaining clips, and the cover.
Read more
Read less
Saved to Project List
ThermaSkirt BM2 Internal Corner Set Connection - 90°
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Product details
- Depth: 20 mm
- Height: 170 mm
- Projection from Wall Including Radiator: 20 mm
- Pipe Inlet Size: 15 mm
- Weight: 0.36 kg
- Material: Plastic & stainless steel
- Colour: White
- Maximum Temperature: 75°
- Application: Domestic & Commercial
- Years Guaranteed: 10
- Type: Connection kits
- Manufacturer Model No: ICSBM-CW
- Brand Name: Discrete Heat
- Range Description: ThermaSkirt
Features & benefits
- Standard connection set for external corners
- Tolerant to ±5° to accommodate imperfect corners
- Single side clips can withstand up to 13 bar pressure
- 0.5mm stainless clip-on cover with colour matched
- Patented push fit connector allows for expansion
- Sturdy cover clip feature prevents accidental detachment and resists tampering
- Compatible with all boiler types including air-source heat pumps
- For chamfering the ends of the profiles use DTSK - ThermaSkirt Installation & Spare Parts Kit (Search SKU 309876)
- Includes: 1 connector clips, 2 of 90° elbow connectors (oval-oval), 10ml sachet of grease and 1 internal corner cover
- 10 year guarantee (T&Cs apply)
