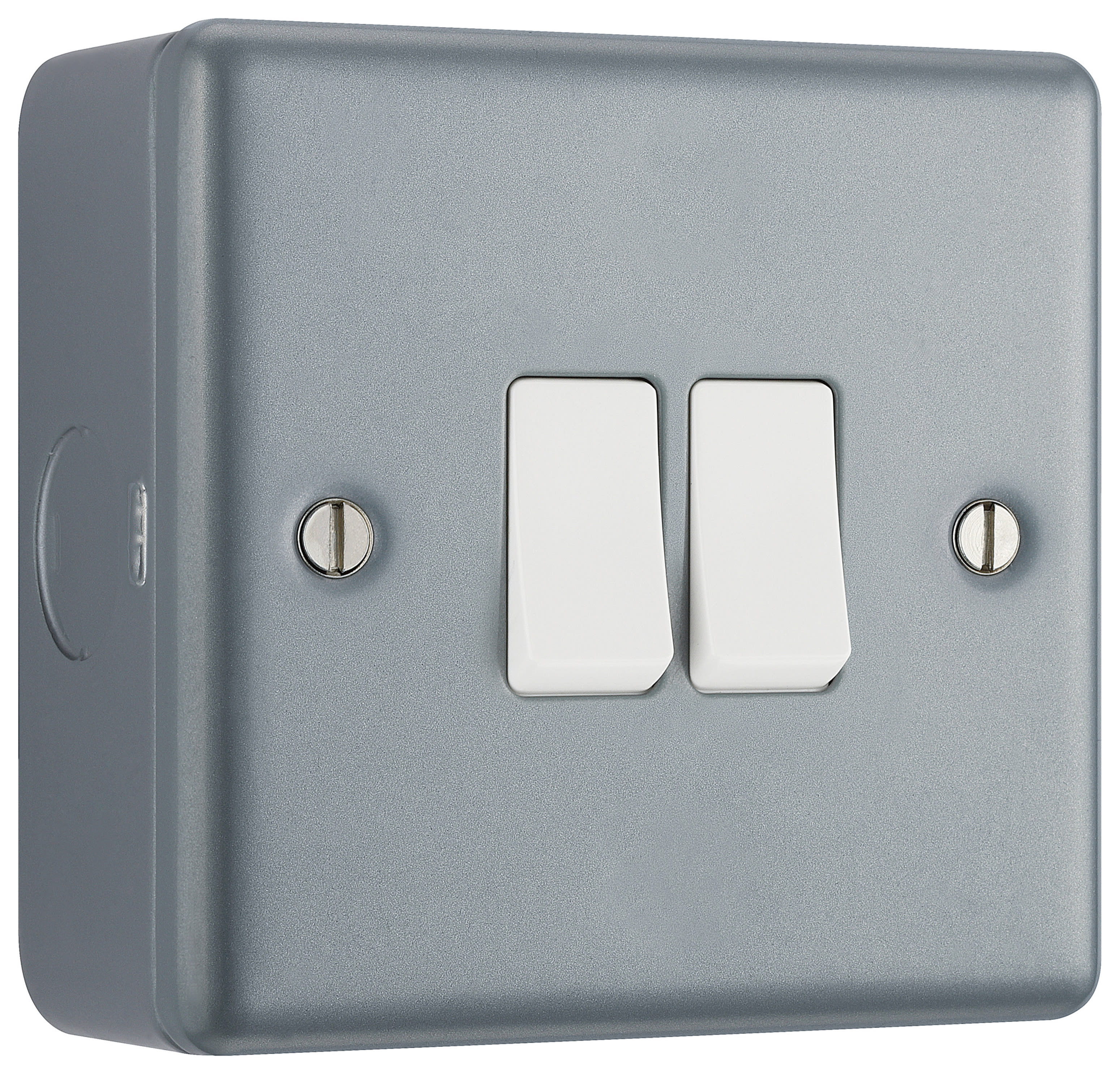

BG Metal Clad 20A 16AX 2 Way Double Light Switch
Product code: 304203
The BG 2 Way Double Light Switch can operate 2 different lights whilst the 2 way switching allows a second switch to be added to the circuit to operate the same light from another location, such as 2 different entrance points in a building or office space. This metal clad switch is made from a rugged scratch resistant steel, and is suitable for everyday use in commercial and industrial environments.
Read more
Read less
Saved to Project List
BG Metal Clad 20A 16AX 2 Way Double Light Switch
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Product details
- Range: BG Metal Clad
- Neon: No
- Number of Gangs: 2
- Number of Ways: 2
- Depth: 52 mm
- Height: 165 mm
- Width: 145 mm
- Material: Steel
- Colour: Grey
- Finish: Powder coated
- Style: Metal clad
- Fastener Type: Screwed
- Interior or Exterior Use: Interior
- IP Rating: IP20
- Current Rating: 20 A 16 Ax
- Voltage: 220-240 V
- Connection Type: Wired
- Type: Switches
- Pack Quantity: 1
- Years Guaranteed: 25
- Standards Met: BS60669-1
- Manufacturer Model No: MC542-01
- Brand Name: BG
Features & benefits
- 20A 16AX rated
- Easy to install, supplied with fixing screws and installation instructions
- 2 way switching allows for a second switch position in a circuit
- Captive, backed out terminal screws for fast installation and to prevent screw loss
- A rugged, scratch resistant range, suitable for everyday use in commercial and industrial environments
- Mounting box with 1 x 20mm knockouts in each side and rear face
- Flat profile with rounded edges
- Certified to BS60669-1
