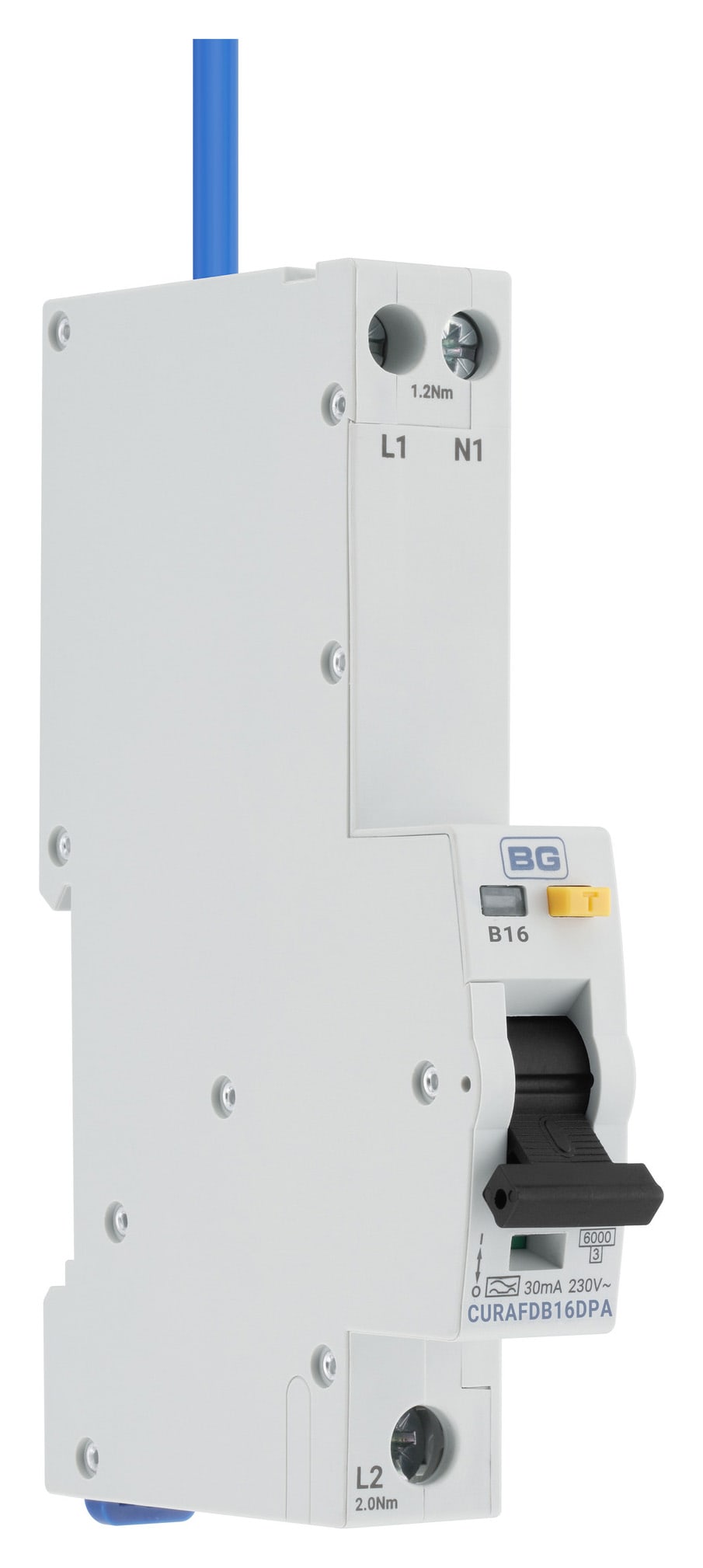

BG Bidirectional 16A Single Module B Curve Compact RCBO Type A 30mA
BG Bidirectional 16A Single Module B Curve Compact RCBO Type A 30mA
Product code: 489778
This Bidirectional double-pole RCBO combines overload, short-circuit, and residual current protection in a compact, space-saving design. Suitable for standard 35mm DIN rail installation, it features live and neutral pole disconnection, a Type A B-curve configuration, 16A current rating, and 30mA tripping sensitivity, making it ideal for residential and commercial applications where power may be fed back into the device.
Read more
Read less
Saved to Project List
BG Bidirectional 16A Single Module B Curve Compact RCBO Type A 30mA
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Supplier delivery
Product details
- Current Rating: 16 A
- Depth: 77 mm
- Height: 90 mm
- Width: 18 mm
- Colour: White
- Configured For: BG consumer units
- Type: RCBOs
- Country Origin: China
- Brand Name: BG
Features & benefits
- Provides superior protection for users & circuits
- Save space & easy to wire with compact design
- Suitable for domestic, commercial PV & EV use
- User-friendly features include manual test button
- Type A, B curve with 16A rating
- 10 year warranty
